ZEDEDA: Third Party Integrations & Data Streams

Step-by-step guide to forwarding edge telemetry from ZEDEDA Cloud to an external observability backend.

A Third Party Integration defines where telemetry goes (a Splunk HEC endpoint or an OpenTelemetry gRPC collector). A Data Stream defines what telemetry is sent (application logs, events, or device metrics) and binds it to an integration. You must create the integration first, then attach one or more data streams to it.

Captured on UI Version 19.2.9 / API Version 19.2.28.
Both features live under the Enterprise scope, so this is enterprise-admin configuration, not per-project.

Media upload: This page references 15 screenshots in the 3rd-party-integrations namespace. Upload all files into that namespace via the Media Manager. If your DokuWiki install rewrites hyphens to underscores on upload, adjust the 3rd-party-integrations references to match.

Prerequisites

An enterprise account with admin rights to the Enterprise menu.
Endpoint details for your backend (host, port, and an auth token).
For Splunk: an HTTP Event Collector (HEC) token and the HEC URL path.
For OpenTelemetry: an OTLP/gRPC endpoint and a bearer token.

Part 1 — Create a Third Party Integration

Step 1.1 — Open Third Party Integrations

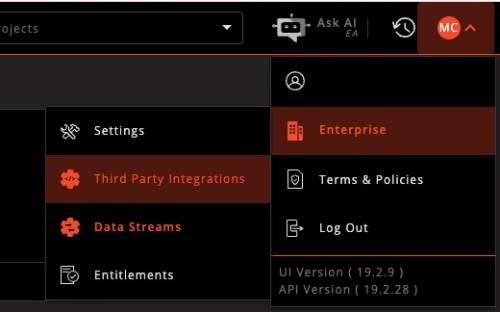

From the top-right user avatar, open the menu and go to Enterprise → Third Party Integrations.

Step 1.2 — Add Integration

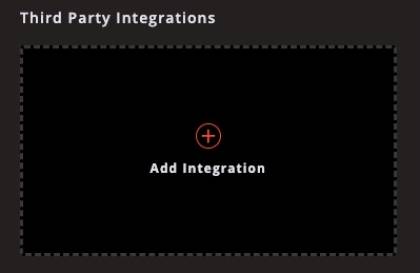

The Third Party Integrations panel lists existing integrations. Click Add Integration.

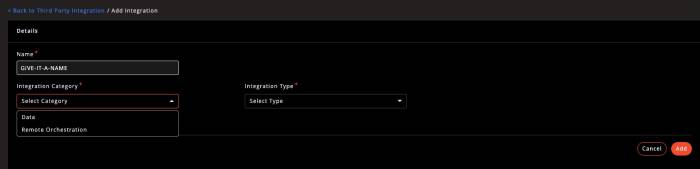

Step 1.3 — Choose Category and Type

Give the integration a Name, then pick the Integration Category. Two categories are available: Data and Remote Orchestration. For log/event/metric forwarding, choose Data.

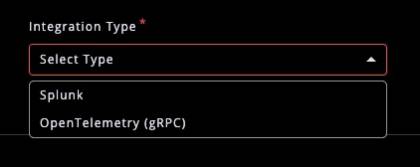

Then pick the Integration Type. For the Data category the available types are Splunk and OpenTelemetry (gRPC).

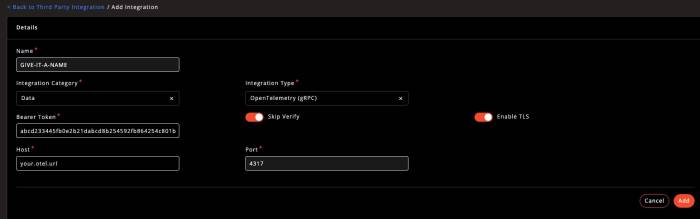

Step 1.4a — OpenTelemetry (gRPC) integration

Fill in the OpenTelemetry fields and click Add.

Field	Example value	Notes
Name	`MC-OTEL`	Friendly label referenced later by Data Streams
Integration Category	`Data`
Integration Type	`OpenTelemetry (gRPC)`
Bearer Token	`abcd2334…c801b`	Auth credential sent to the collector
Skip Verify	On	Skip TLS certificate verification
Enable TLS	On	Use TLS for the gRPC connection
Host	`your.otel.url`	OTLP/gRPC collector hostname
Port	`4317`	Default OTLP/gRPC port

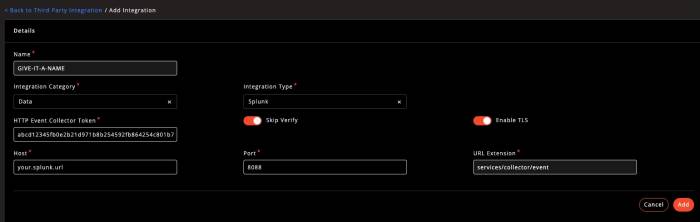

Step 1.4b — Splunk integration

Alternatively, fill in the Splunk fields and click Add.

Field	Example value	Notes
Name	`MC-SPLUNK`
Integration Category	`Data`
Integration Type	`Splunk`
HTTP Event Collector Token	`abcd1234…c801b7`	Splunk HEC token
Skip Verify	On	Skip TLS certificate verification
Enable TLS	On	Use TLS for the HEC connection
Host	`your.splunk.url`	Splunk HEC host
Port	`8088`	Default Splunk HEC port
URL Extension	`services/collector/event`	HEC event endpoint path

Step 1.5 — Verify the integrations

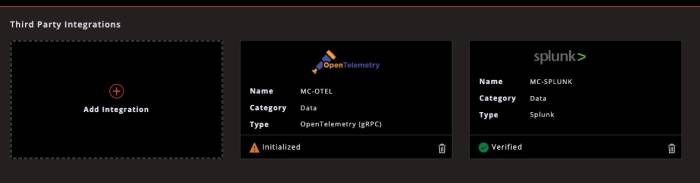

The panel now shows each integration as a card with its Name, Category, and Type, plus a status badge.

Verified (green check): the platform has confirmed connectivity to the endpoint (MC-SPLUNK above).
Initialized (amber triangle): the integration has been created but is not yet confirmed/verified (MC-OTEL above).
Use the trash icon on a card to delete an integration.

Part 2 — Create Data Streams

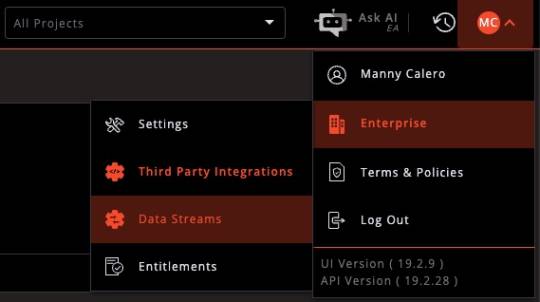

Step 2.1 — Open Data Streams

From the same avatar menu, go to Enterprise → Data Streams.

Step 2.2 — Add Data Stream

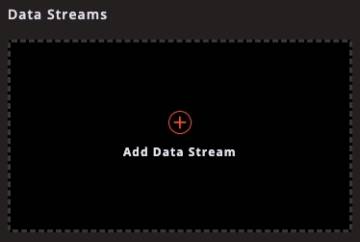

Click Add Data Stream.

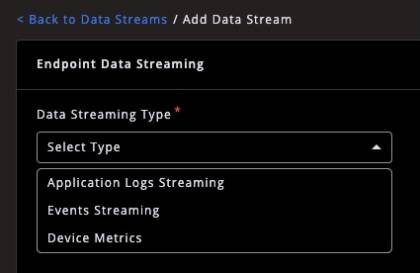

Step 2.3 — Choose a Data Streaming Type

Open Data Streaming Type. Three telemetry categories are available:

Type	Sends
Application Logs Streaming	Logs from edge applications
Events Streaming	Platform / device events
Device Metrics	Edge node telemetry metrics

Step 2.4 — Bind to an integration

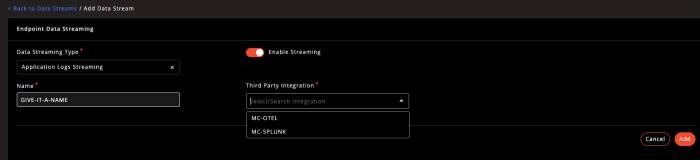

Set the Name, leave Enable Streaming on, then select a Third Party Integration. The dropdown lists the integrations created in Part 1.

Step 2.5 — Example: three streams to MC-OTEL

Create one stream per telemetry type, all pointing at the same integration.

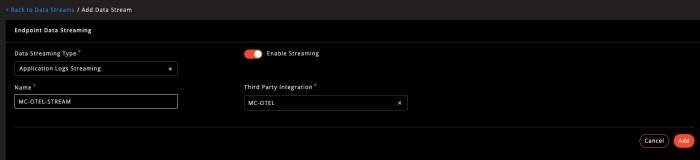

Application Logs → MC-OTEL (name MC-OTEL-STREAM):

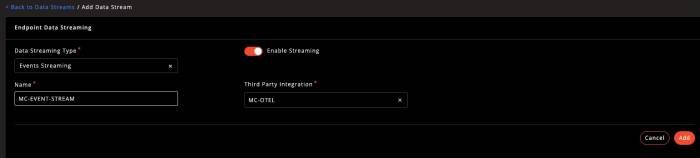

Events → MC-OTEL (name MC-EVENT-STREAM):

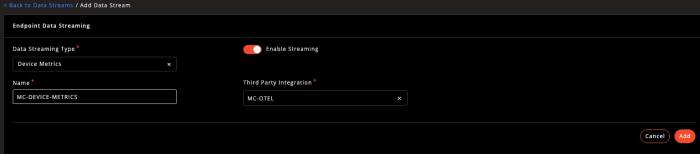

Device Metrics → MC-OTEL (name MC-DEVICE-METRICS):

Repeat the same three types against MC-SPLUNK to fan telemetry out to both backends.

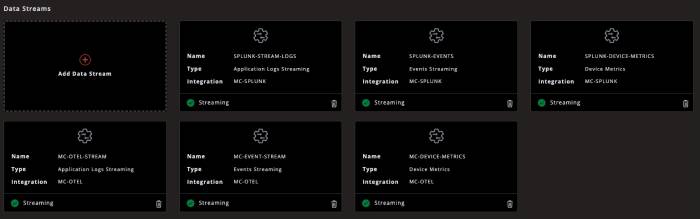

Step 2.6 — Review all data streams

Each stream shows its Name, Type, target Integration, and a green Streaming badge when active.

Name	Type	Integration
SPLUNK-STREAM-LOGS	Application Logs Streaming	MC-SPLUNK
SPLUNK-EVENTS	Events Streaming	MC-SPLUNK
SPLUNK-DEVICE-METRICS	Device Metrics	MC-SPLUNK
MC-OTEL-STREAM	Application Logs Streaming	MC-OTEL
MC-EVENT-STREAM	Events Streaming	MC-OTEL
MC-DEVICE-METRICS	Device Metrics	MC-OTEL

Notes

Create the integration before the data stream; the stream's Third Party Integration dropdown only lists existing integrations.
You can stream all three telemetry types to the same integration, and to more than one integration in parallel.
The Enable Streaming toggle lets you pause a stream without deleting it.
Default ports: Splunk HEC 8088, OTLP/gRPC 4317.
